HMP63

适用于室内环境

产品特点

  • Fast thermal response time
  • Low power consumption
  • Start-up time < 2 s
  • Measurement range: 0 ... 100 %RH; -40 ... +60°C
  • Detachable cable with standard 4-pin M8 connector
  • Plastic enclosure with IP54 classification
  • nterchangeable Vaisala INTERCAP® sensor
  • Optional RS485 digital output
  • Optional dew point output

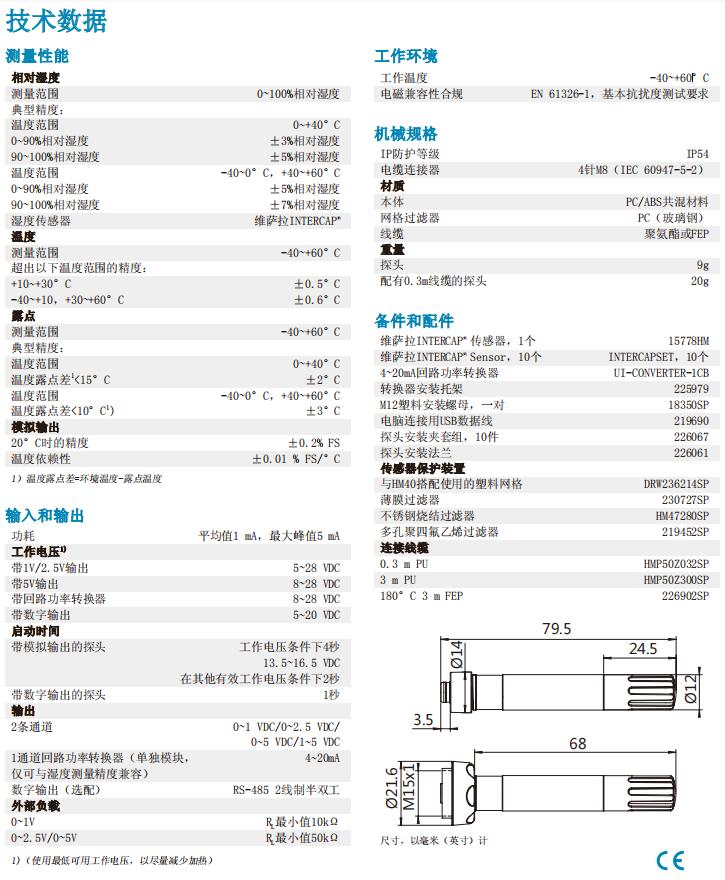

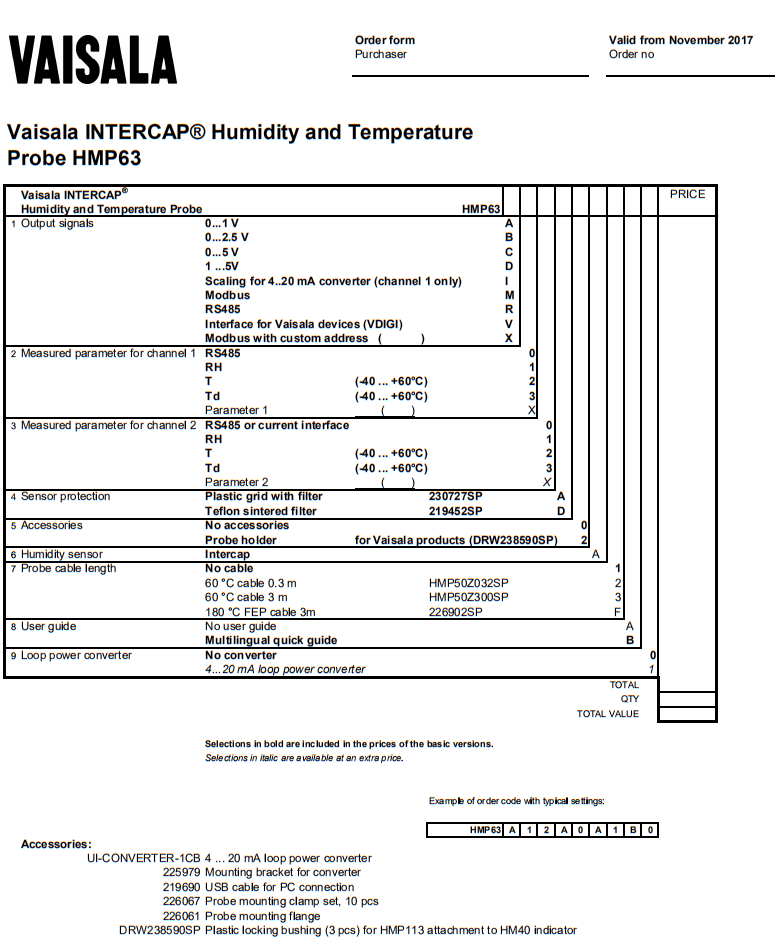

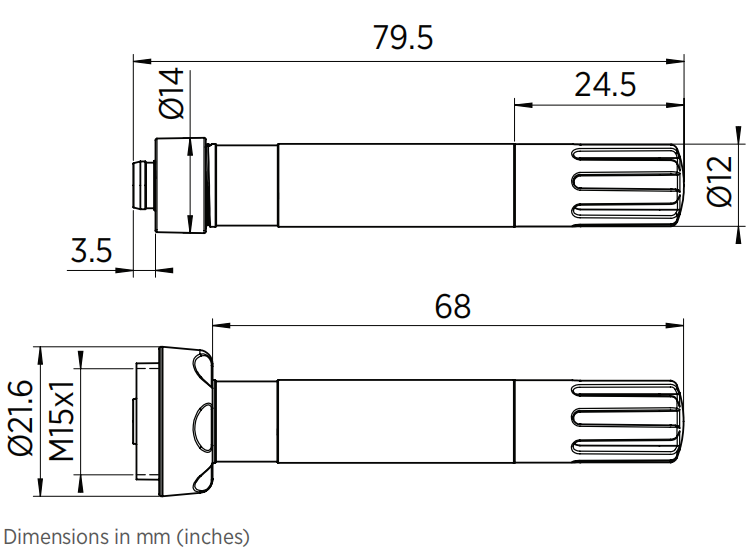

产品概述 技术参数 电气连接 外形尺寸 产品资料 选型表 操作手册 相关视频

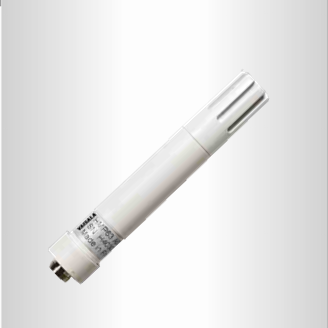

      The Vaisala INTERCAP® Humidity and  Temperature Probe

HMP63 is a costeffective humidity probe with plastic enclosure. It is designed for noncondensing indoor environments or integration into other manufacturers’ equipment.

Easy Installation
The probe fits into tight spaces. The cable has a threaded M8 connector
for easy installation. Different cable lengths are available and other compatible M8-series cables can also be used.  Accessories are available for different installation needs.

Low Power Consumption
The HMP63 is suitable for batterypowered applications thanks to its very low power consumption and fast start-up time.

Several Outputs

There are two configurable voltage outputs for relative humidity,
temperature, or dew point output. An alternative RS485 output with Modbus support is also available.
Fast Thermal Response
Time
The HMP63 has a PC/ABS plastic enclosure. It is ideal for conditions with fast temperature changes and when standard measurement accuracy is sufficient.

No Recalibration Required
The HMP63 includes an interchangeable Vaisala INTERCAP®
sensor. No recalibration is required – the humidity sensor can simply be replaced, even in the field.
