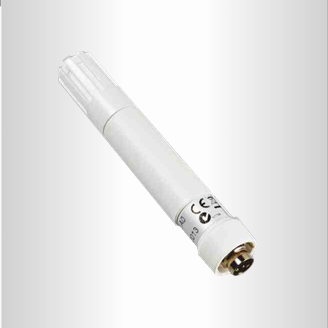

HMP113

具有卓越的稳定性和高化学耐受性的温、湿度测量探头

产品特点

  • Fast thermal response time
  • Low power consumption
  • Start-up time < 2 s
  • Measurement range:0 ... 100 %RH; -40 ... +60°C
  • Detachable cable with standard 4-pin M8 connector
  • Plastic enclosure with IP54 classification
  • Proven Vaisala HUMICAP® 180R sensor for excellent  stability
  • Optional RS485 digital output
  • Optional dew point calculation
  • Traceable: comes with calibration certificate. ±1.5%RH measurement accuracy (0 ... 90%RH)

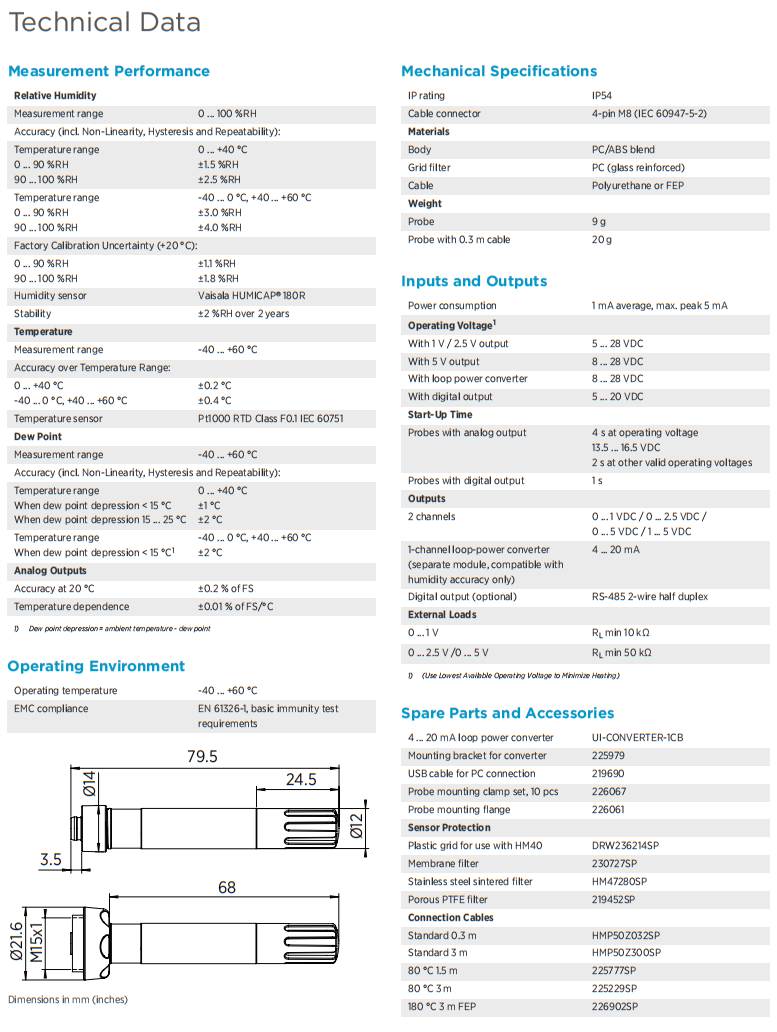

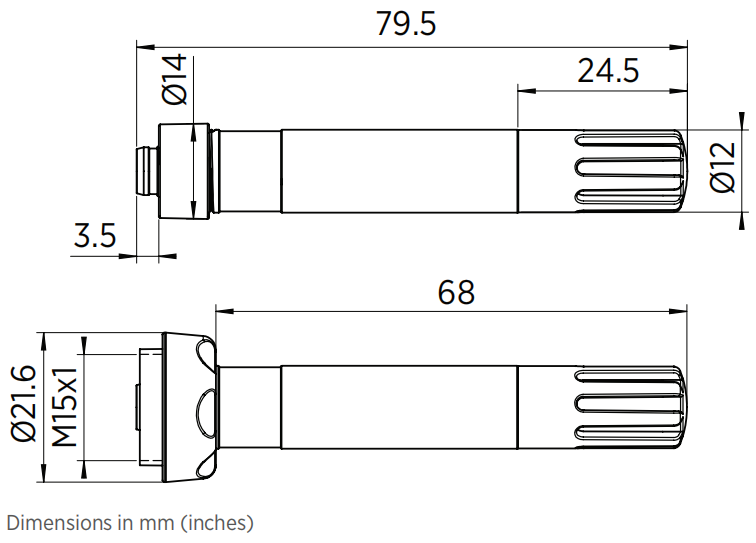

产品概述 技术参数 电气连接 外形尺寸 产品资料 选型表 操作手册 相关视频


        The Vaisala HUMICAP®Vaisala HUMICAP®Humidity and Temperature Probe HMP113 is a highly accurate and cost-effective humidity probe with plastic enclosure. It is designed for indoor environments, integration into other manufacturers’equipment, or use with Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter HM40.


Easy Installation

        The compact probe fits into tight spaces.The cable has a threaded M8 connector for easy installation. Different cablelengths and a selection of accessories are available.


Low Power Consumption

        HMP113 is suitable for battery powered applications due to its very low power consumption. It also has an extremely fast start-up time.

Several Outputs

        There are two voltage outputs for relative humidity and temperature or dew point measurement. An optional RS-485 output with Modbus support is also available.


High Performance

        HMP113 HMP113 has a PC/ABS plastic enclosure and is suitable for noncondensing environments with fast temperature changes and a need for high accuracy measurements with traceability. HMP113 also has a high chemical tolerance thanks to the proven Vaisala HUMICAP® 180R sensor.


Variety of Calibration Options

        A quick field calibration can easily be carried out using a hand-held meter, for example Vaisala Hand-Held Meter HM40. Alternatively, the probe can be calibrated using a PC with USB cable or sent to a Vaisala Service Center.
